Rotary Drilling Rig
BAUER Rotary Drilling Rental Fleet
Bauer drilling rigs has the most advanced modular system in rotary drilling. It reflects more than 30 years of job-site experience and the continuous advancement in design and manufacturing methods.
The BG rigs are known for:
• Quality
• Economic efficiency and performance
• Service friendliness
• Highest safety levels
• Environmental awareness
• Long life expectancy

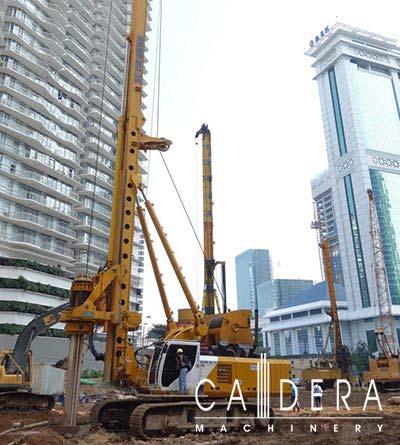

BG 38
Max Drilling Diameter: |
2700 mm |
Max Drilling Depth: |
92.8 m |
Torque: |
380 kNm |
Engine: |
CAT C15 |
Power: |
354 kW@1,800 rpm |
Main Winch Capacity: |
370 kN |
LB 36
Max Drilling Diameter: |
3000 mm |
Max Drilling Depth: |
76 m |
Torque: |
410 kNm |
Engine: |
Liebherr D846 |
Power: |
350 kW@1,700 rpm |
Main Winch Capacity: |
400 kN |

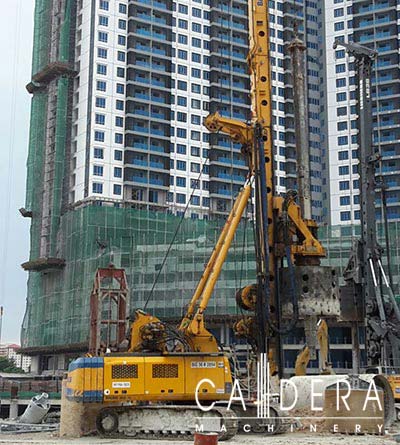

BG 36
Max Drilling Diameter: |
2300 mm |
Max Drilling Depth: |
72 m |
Torque: |
367 kNm |
Engine: |
CAT C15 |
Power: |
354 kW@1,800 rpm |
Main Winch Capacity: |
300 kN |

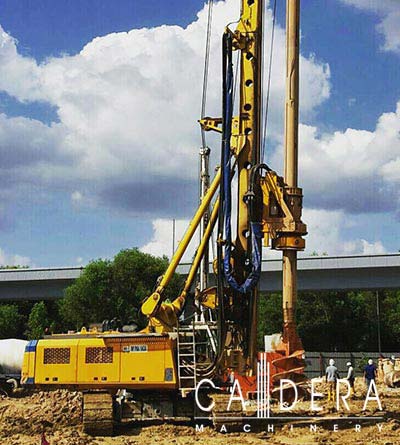

BG 28
Max Drilling Diameter: |
1900 mm |
Max Drilling Depth: |
56 m |
Torque: |
270 kNm |
Engine: |
CAT C15 |
Power: |
354 kW@1,800 rpm |
Main Winch Capacity: |
250 kN |

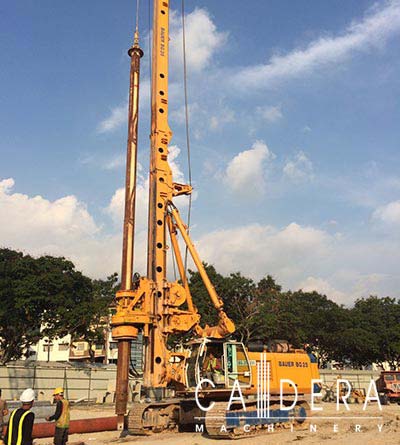

BG 25
Max Drilling Diameter: |
1700 mm |
Max Drilling Depth: |
60 m |
Torque: |
245 kNm |
Engine: |
CAT C15 |
Power: |
354 kW@1,800 rpm |
Main Winch Capacity: |
250 kN |

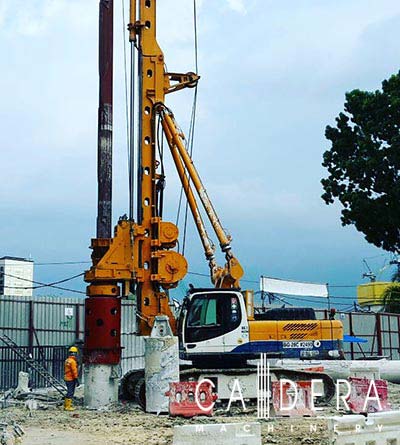

BG 25C
Max Drilling Diameter: |
1600 mm |
Max Drilling Depth: |
56 m |
Torque: |
245 kNm |
Engine: |
Cumins 8.3G |
Power: |
194 kW@2,200 rpm |
Main Winch Capacity: |
250 kN |
